Butterfly Motorcoach Bus Seat

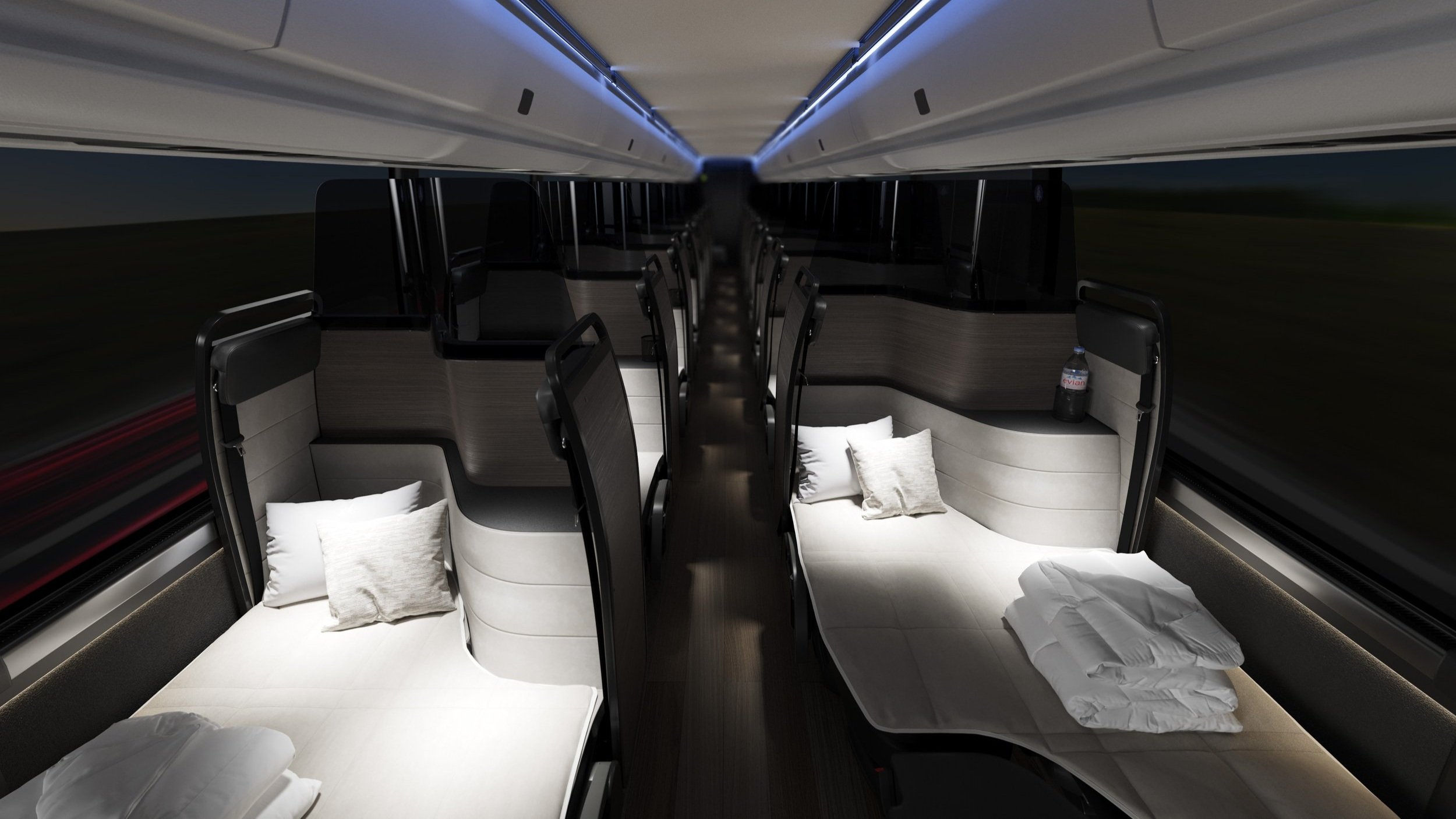

Butterfly Motorcoach is a sleeper seat that is specially adapted for long-distance buses and coaches in USA and Canada.  Designed with simplified mechanisms and sturdy construction to match the economics of the coach market, this simplified version of the convertible seating concept Butterfly, originated for aerospace applications, brings the comfort of airline-style long-haul business class seating to the motorcoach industry. With the same kind of flexibility as the Butterfly aircraft seat, Butterfly Motorcoach bus seating is set to open up new opportunities for premium sleeper coach services.

Butterfly makes use of a simple mechanism to transform between the different modes- by manually flipping the seatback over to reveal its thickly padded back surface. This cost-effective mechanism leads to a seat that is simple to operate, comfortable, and low-maintenance.

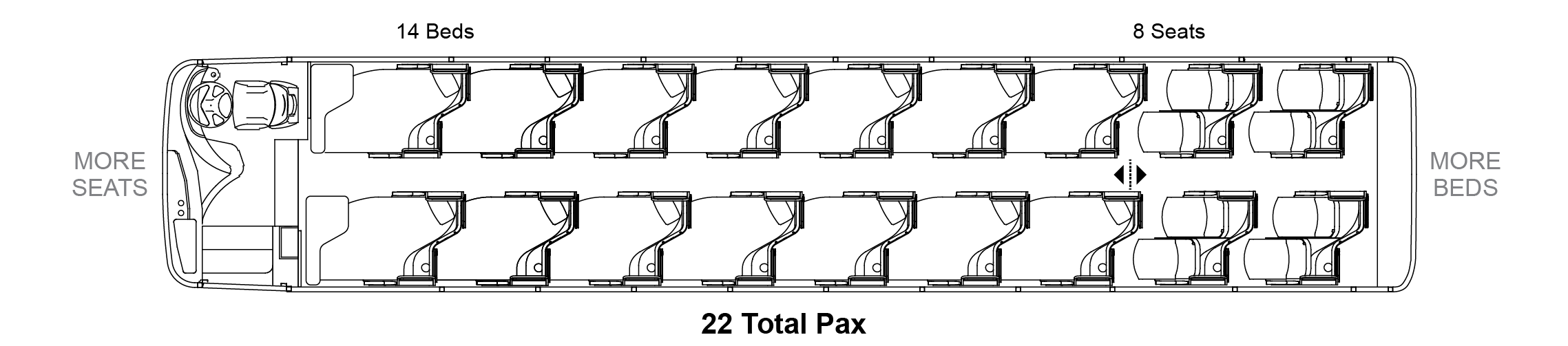

From 18 Beds to 36 Seats and any combination in between, Butterfly Motorcoach empowers operators to adjust seating configurations to accommodate a variety of missions effortlessly. With a flexible design, the convertible seats can be reconfigured to suit different group sizes and purposes, whether for long-distance travel, group outings, or entertainment tours. This adaptability ensures maximum efficiency and comfort for passengers, allowing operators to optimize their vehicles for any situation.

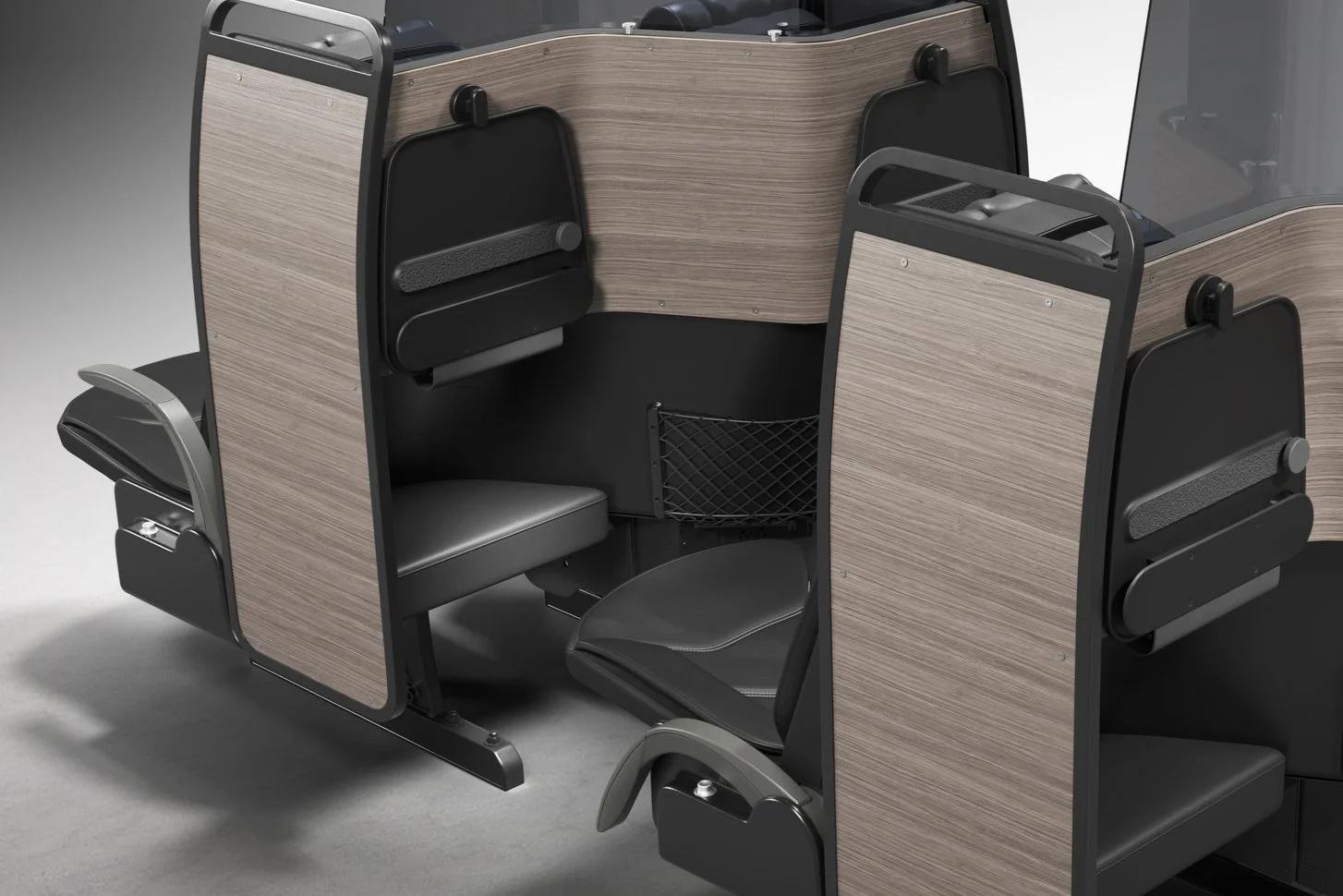

Butterfly’s innovative layout enhances the passenger experience through its staggered arrangement which optimizes the space between individuals. The design features separate and dedicated sleeping and seating surfaces, ensuring uncompromised comfort for both work and relaxation.

Spatial Features

• Evenly flat, diamond-shaped 78” (198cm) long bed, and up to 40” (102cm) of width across hips, ideal for lateral sleeping position

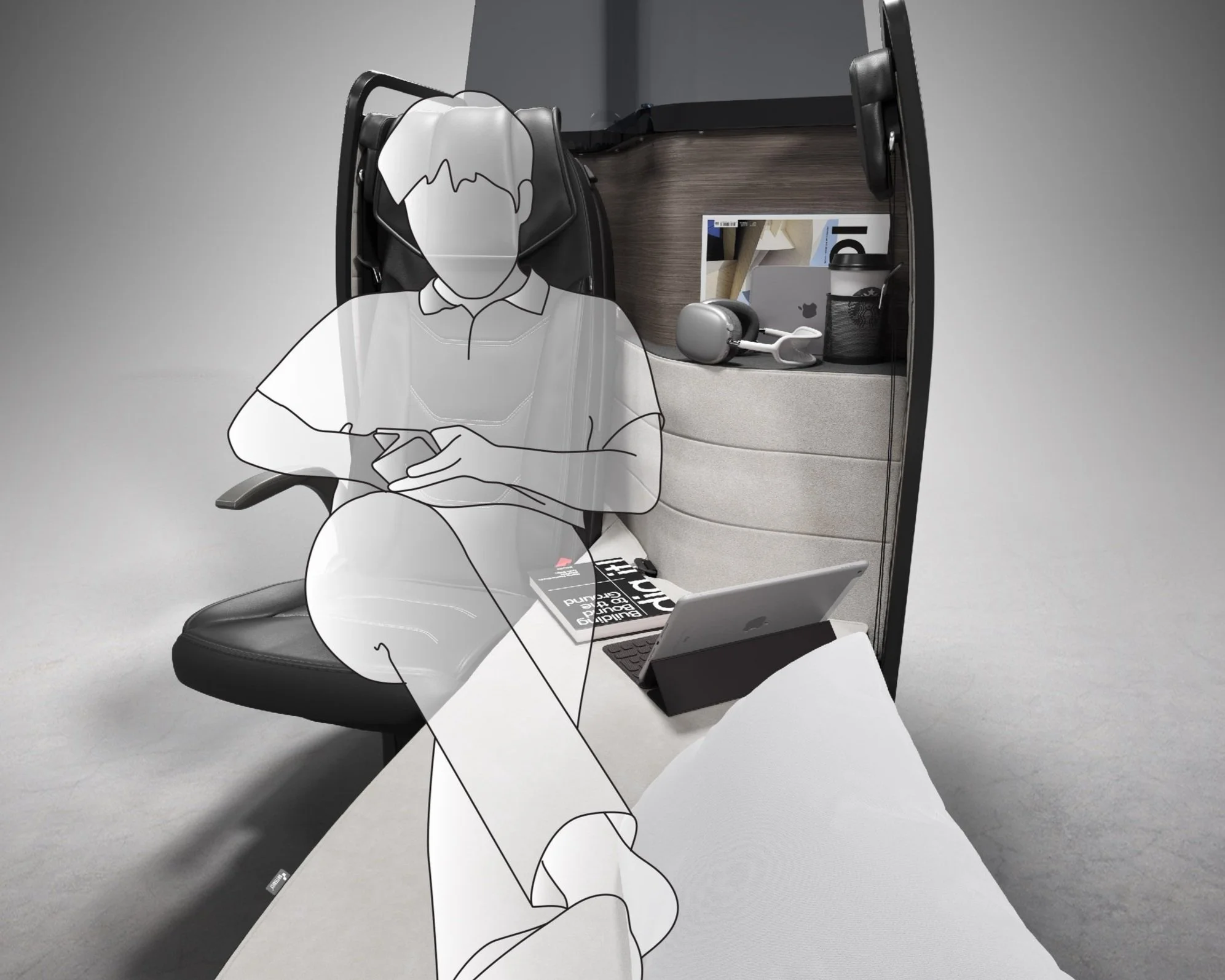

• Multi-functional side couch for passengers to stretch out, switch positions, or spread out their belongings

• 12” (30cm) offset between adjacent seats that increases effective width and maximizes separation and distance between pax

• 1.75” (4.5cm) wide aisle armrest with dropdown option to facilitate egress and for ADA compliance

Comfort Features

• 8” (20cm) cradle recline mechanism with manual actuation

• Adjustable height headrest padding flap and side headrest for sit-up sleeping comfort

• Flip-over seat back with contoured front side for optimal comfort and sit-up support when used as a seat

• 2.5” (6.4cm) thick mattress padding on reverse side of seatback, soft and evenly flat for maximum sleeping comfort

• Retractable sleeping belt for a comfortable sleep and an uncluttered look

• Sound-absorbing soft panels that allow easy replacement

Generous surfaces, well-designed storage options, and well-thought-through ergonimics guarantee that passengers can maximize their productivity, whether preparing strategy sessions or business meetings. The abundant surfaces, combined with functional storage solutions, enhance convenience in both suite and dual-seater modes.

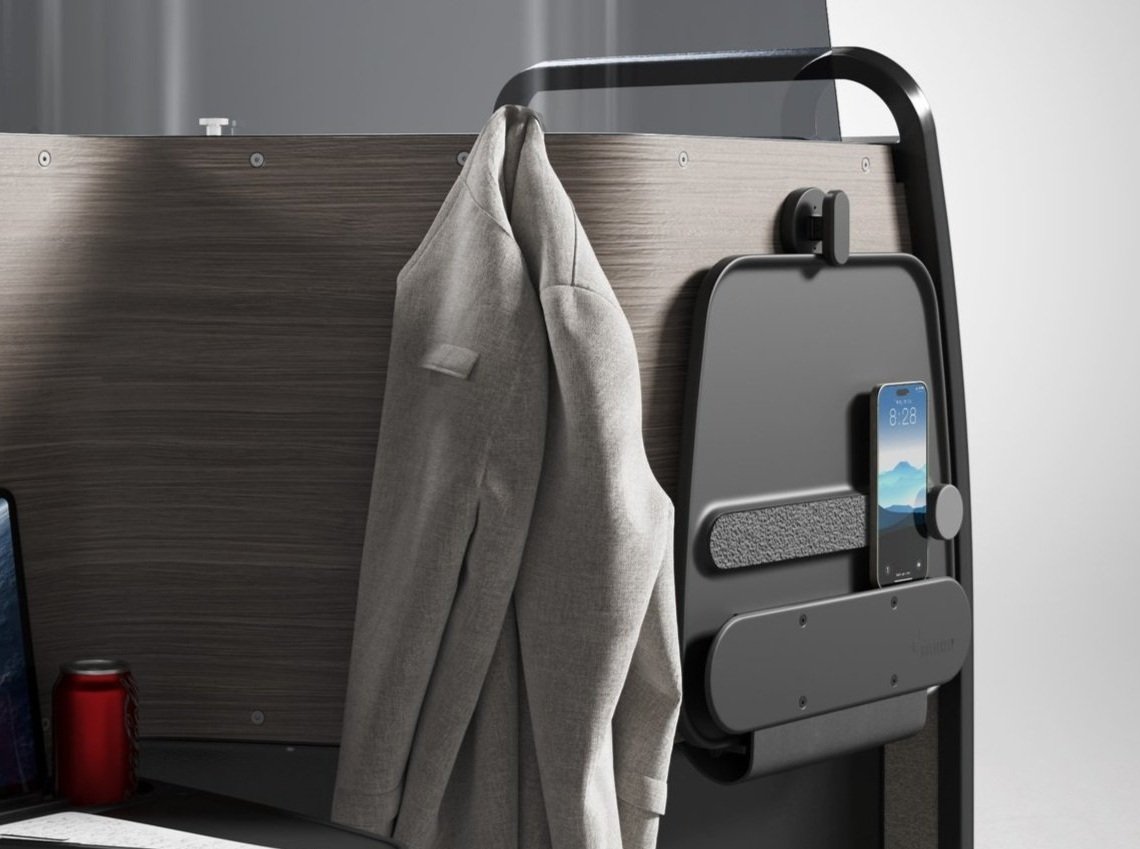

Stowage Features

• Magazine and tablet storage rack

• Bottle holder available in flatbad suite mode

• Net pocket for personal items storage

• Coat hooks

• Generous space underneath side couch in flatbed suite mode for bags and suitcases

• Cupholder recess on meal tray for securing drinks

• Tablet holding slots on meal tray with three positions for different viewing angles

• Personal electronic device (PED) holder on back of meal tray with padded resting surfaces and spring-loaded securing knob

Usable Surfaces

• Large meal table (13”x14”) (33x36cm) with friction hinges for superior motion experience

• Side cocktail tray in flatbed suite mode for small items

• Large side couch for placing all the cushions and beddings

Electronic Features

• Twin 120v power outlets

• Twin USB charging ports

Butterfly's innovative seating layout offers travelers an array of fresh and engaging options to personalize their living space. This flexibility caters to a variety of needs, whether individuals are embarking on a journey alone or sharing the experience with companions.

Family Friendly Configurations

• Multifunctional side couch can be offered as a bed for children even in 2-seater higher density mode

• Side couch that functions as a guest seat for face-to-face interactions on board

• Bed wide enough for couples to share economically

Privacy Features

• Fixed curved plywood seat shell with privacy side walls

• 60.5” (154cm) high tinted polycarbonate row-to-row privacy divider

• 12” (30cm) offset between adjacent seats maximizes perception of privacy

• Ceiling mounted privacy roller blind for ultimate seclusion

Butterfly’s innovative coach bus seating concept entered services with our launch customer, US-based Napaway Coach, in June 2022. Napaway offers premium sleeper coach charter services, giving travelers a comfortable, convenient, private and productive alternative to air travel. Now, Butterfly is the exclusive bus seat supplier for the entirety of Napaway’s charter bus network and has been adopted by several partner operators across the US.
